Big Tex 3XGN
Call For More Information
Super Duty Tandem Dual Gooseneck Trailer
Haul big and heavy with the 3XGN Super Duty Tandem Dual Gooseneck Trailer, a super heavy-duty gooseneck trailer thats packing 15,000-lb axles to transport the heaviest equipment - even in difficult and rugged conditions. Thats why this trailer is designed with a 30,000 lbs G.V.W.R., giving construction contractors, industrial operations, and heavy equipment dealers the strength and dependability needed to handle their day-to-day grind. From top to bottom, its built to work hard just like you do.
- Overview
- Features/Specifications
- Standard/Optional Equipment
Overview
Big Tex 3XGN Super Duty Tandem Dual Gooseneck Trailer
Haul big and heavy with the 3XGN Super Duty Tandem Dual Gooseneck Trailer, a super heavy-duty gooseneck trailer thats packing 15,000-lb axles to transport the heaviest equipment - even in difficult and rugged conditions. Thats why this trailer is designed with a 30,000 lbs G.V.W.R., giving construction contractors, industrial operations, and heavy equipment dealers the strength and dependability needed to handle their day-to-day grind. From top to bottom, its built to work hard just like you do.
| SIZE | WEIGHT | DESCRIPTION |
|---|---|---|
| 30' | 10,200# | 102" x 35' + 5' Super Duty Tandem Dual Wheel Gooseneck |
| 20' | 6,980# | 102" x 20' + 5' Super Duty Tandem Dual Wheel Gooseneck |
| 25' | 8,440# | 102" x 25' + 5' Super Duty Tandem Dual Wheel Gooseneck |
| 28' | 9,140# | 102" x 28' + 5' Super Duty Tandem Dual Wheel Gooseneck |
| 36' | 9,290# | 102" x 36' Super Duty Tandem Dual Wheel Gooseneck |
| 40' | 10,370# | 102" x 40' Super Duty Tandem Dual Wheel Gooseneck |
Features/Specifications
Features
| AXLE | (2) HD 15,000# Dual Wheel w/ Electric Brakes (Oil Bath) |
|---|---|
| JACK | Dual Two Speed Landing Gear (Bolted On) |
| NECK | 12" I-Beam, 22# |
| TIRE | 215/75 R-17.5 Load Range H Dual |
| FLOOR | 2" Treated Pine or Douglas Fir* |
| FRAME | 12" I-Beam, 22# up to 30; 14" I-Beam on 30 + |
| WHEEL | 17.5" HC x 6.75", 8x275 MM BC Hub Pilot; Dual Wheel |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| COUPLER | 2-5/16" Ball Adj. Square Crank Type |
| DOVETAIL | 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps |
|---|---|
| G.V.W.R. | 30,000# |
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Gooseneck |
| SIDE RAILS | 8" Channel w/Rub Rail, Tie Down Pockets on 24" Centers, and Chain Spools |
| SUSPENSION | Heavy Duty 44,000# Adjustable |
| CROSSMEMBERS | 6" Jr. I-Beam, 16" Centers |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 1/2" Grd. 80 w/Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 15,000# |
Specifications
Big Tex 3XGN Super Duty Tandem Dual Gooseneck Trailer
| Model | Description |
|---|---|
| 3XGN-35+5 | 102" x 35' + 5' Super Duty Tandem Dual Wheel Gooseneck |
| 3XGN-20+5 | 102" x 20' + 5' Super Duty Tandem Dual Wheel Gooseneck |
| 3XGN-25+5 | 102" x 25' + 5' Super Duty Tandem Dual Wheel Gooseneck |
| 3XGN-28+5 | 102" x 28' + 5' Super Duty Tandem Dual Wheel Gooseneck |
| 3XGN-36 | 102" x 36' Super Duty Tandem Dual Wheel Gooseneck |
| 3XGN-40 | 102" x 40' Super Duty Tandem Dual Wheel Gooseneck |

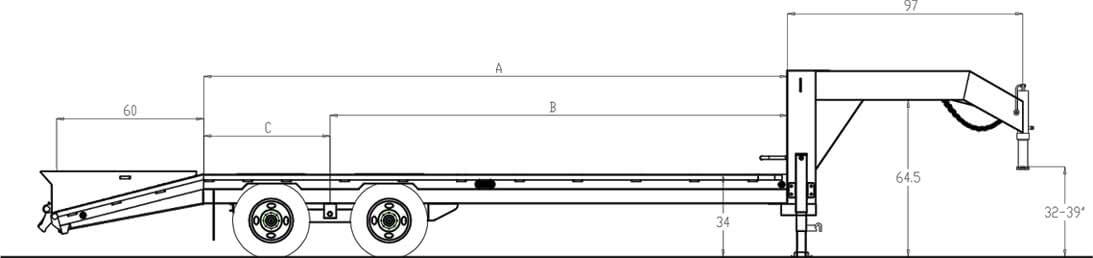

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 30' | 360" | 240" | 120" |
| 20' | 240" | 160" | 80" |
| 25' | 288" | 192" | 86" |
| 28' | 336" | 224" | 112" |
| 36' | |||
| 40' |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 30' | 10,200# | 19,800# | N/A |
| 20' | 6,980# | 23,020# | N/A |
| 25' | 8,440# | 21,560# | N/A |
| 28' | 9,140# | 20,860# | N/A |
| 36' | 9,290# | 20,710# | N/A |
| 40' | 10,370# | 19,630# | N/A |
Standard/Optional Equipment
Standard Equipment
- 2-5/16" Ball Adjustable Coupler- Square Crank Type
- Dual Two Speed Landing Gear 50K Capacity (Bolted On)
- 102" Overall Width
- Low Profile Bed, Pierced- Beam Frame Design
- Lockable Toolbox Between GN Uprights
- (2) Side Bed Steps & Handles
- 3/8" Heavy Duty Rub Rail
- Stake Pockets Along Sides, 24" On Center
- 1-1/4" Pipe Chain Spools Between Tie Down Pockets
- Premium Brand Axles
- Oil Bath Hubs
- Forward Self Adjusting Brakes
- Heavy Duty 44,000# Adjustable Suspension
- Torque Tube Standard on 28 (Flat Deck) & Longer
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Modular Sealed Wiring Harness
- Spare Tire Mount (Top of Neck)
- 5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
- Complete Break-A-Way System w/Charger
- Zip Breakaway Cable
- Radial Tires
- Mudflaps
- Spare Tire & Wheel - Standard Equiped
Optional Equipment
| Category | Description |
|---|---|
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Removable Deck on the Neck- Bolt On (8 W x 6 L) |
| BRAKES | Air Brake Assembly w/ABS on Front, Spring Brake Chambers & Auto Slacks |
| BRAKES | Electric Over Hydraulic Brakes (Drum) |
| CARGO CONTROL | 4" Sliding Winch |
| CARGO CONTROL | 4" Weld-On Winch |
| CARGO CONTROL | 4" x 30 Strap |
| CARGO CONTROL | B 40 5/8" D-Ring |
| CARGO CONTROL | Low Profile Tool Box 12" x 18" x 36" (Side Mount) |
| CARGO CONTROL | Sliding Winch Track (Per 6 Section) |
| JACK | Dual Electric Over Hydraulic Jacks by Stillwell |
| RAMPS | (2) 5 MEGA Ramps |
| RAMPS | No Dovetail Option (Deletes Dovetail & Ramps) |
