Big Tex 16TL
Call For More Information
Super Duty Tilt Bed Equipment Trailer
Upgrade your productivity and versatility with the 16TL Super Duty Tilt Bed Equipment Trailer. Coming in multiple models - from 20-feet to 22-feet - this trailer features a stationary front deck and a rear tilt deck, giving you all kinds of options for loading all your low-profile equipment. And with a 12-degree tilt angle and a diamond plate knife edge, loading is a cinch. With sturdy construction and multiple ways to secure your cargo, this thing will haul for the long haul.
- Overview
- Features/Specifications
- Standard/Optional Equipment
Overview
Big Tex 16TL Super Duty Tilt Bed Equipment Trailer
Upgrade your productivity and versatility with the 16TL Super Duty Tilt Bed Equipment Trailer. Coming in multiple models - from 20-feet to 22-feet - this trailer features a stationary front deck and a rear tilt deck, giving you all kinds of options for loading all your low-profile equipment. And with a 12-degree tilt angle and a diamond plate knife edge, loading is a cinch. With sturdy construction and multiple ways to secure your cargo, this thing will haul for the long haul.
| SIZE | WEIGHT | DESCRIPTION |
|---|---|---|
| 20' | 4,760# | 83" x 20' (16' + 4') Super Duty Tilt Bed Trailer |
| 20' GN | 5,560# | 83" x 20' (16' + 4') Super Duty Gooseneck Tilt Bed Trailer |
| 22' | 5,000# | 83" x 22' (16' + 6') Super Duty Tilt Bed Trailer |
| 22' GN | 5,800# | 83" x 22' (16' + 6') Super Duty Gooseneck Tilt Bed Trailer |
Features/Specifications
Features
| AXLE | (2) 8,000# Oil Bath w/ Electric Brakes |
|---|---|
| JACK | 12,000# Drop Leg Jack-Side Wind |
| TIRE | ST215/75 R-17.5 Load Range H |
| FLOOR | 2" Treated Pine or Douglas Fir* |
| FRAME | 8" Channel |
| WHEEL | 17.5" x 6.75"; Black Mod 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| COUPLER | Adjustable 2-5/16" 18,000# Demco EZ Latch |
| FENDERS | 9" x 72" Double Broke Diamond Plate w/Back (Removable) |
| G.V.W.R. | 17,500# |
|---|---|
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Bumper Pull |
| SUSPENSION | Torsion |
| TONGUE/NECK | 6" Channel Fold Back/Wrap Tongue, 10" I-Beam Neck on GN |
| CROSSMEMBERS | 3" Channel on 16" Centers |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 3/8" Grd. 70 w/Safety Latch Hook (2 ea) |
| FRONT STOP RAIL | 3/16" Fabricated Front Stop Rail |
| G.A.W.R. (Ea. Axle) | 8,000# |
Specifications
Big Tex 16TL Super Duty Tilt Bed Equipment Trailer
| Model | Description |
|---|---|
| 16TL-20 | 83" x 20' (16' + 4') Super Duty Tilt Bed Trailer |
| 16TL-20GN | 83" x 20' (16' + 4') Super Duty Gooseneck Tilt Bed Trailer |
| 16TL-22 | 83" x 22' (16' + 6') Super Duty Tilt Bed Trailer |
| 16TL-22GN | 83" x 22' (16' + 6') Super Duty Gooseneck Tilt Bed Trailer |

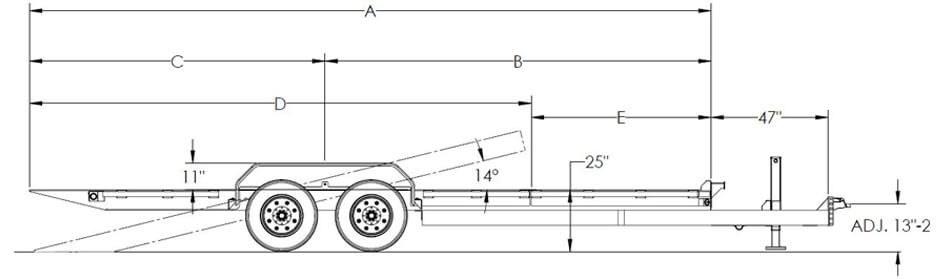

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 20' | 249-1/2" | 130-1/2" | 119" |
| 20' GN | 249-1/2" | 130-1/2" | 119" |
| 22' | 273-1/2" | 154-1/2" | 119" |
| 22' GN | 273-1/2" | 154-1/2" | 119" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 20' | 4,760# | 12,740# | N/A |
| 20' GN | 5,560# | 11,940# | N/A |
| 22' | 5,000# | 12,500# | N/A |
| 22' GN | 5,800# | 11,700# | N/A |
Standard/Optional Equipment
Standard Equipment
- Adjustable 2-5/16" Demco Coupler in Channel
- (6) D-Rings to Secure Equipment
- Rubrail and Stake Pockets Along Sides
- (6) 5/8" Surface Mount D-Rings On Top of Frame
- Adjustable 2-5/16" Demco EZ Latch Coupler
- Fold Back/Wrap Tongue
- 12,000# Drop Leg Jack-Side Wind
- Dual Jacks & Front Toolbox on Gooseneck Model
- Fabricated Front Stop Rail
- Premium Brand 8,000# Torsion Axles
- Forward Self Adjusting Electric Brakes on All Hubs
- Cambered, Oil Bath Axles
- Complete Break-A-Way System w/Charger
- Zip Breakaway Cable
- 14 Ga. Double Square Broke Diamond Plate Fenders (Removable)
- Single-Side, EZ Pedal Locking Mechanism
- Stationary Front Deck for Added Versatility
- Unique Two Piece Main Frame
- Full 83" Wide Bed Between Fenders
- Tilt Platform is 75" Wide
- Hydraulic Dampening Cylinder w/ Valve Control
- 1/4" Diamond Plate Knife Edge on Rear
- Storage Tray in Tongue Area
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed Modular Wiring Harness
- 17/5" Radial Tires
- 5/8" Wheel Studs
- Spare Tire Mount (Front)
Optional Equipment
| Category | Description |
|---|---|
| BODY | 3/16" Diamond Plate Steel Floor |
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Blackwood Pro- Outer Deck Only |
| CARGO CONTROL | Additional B40 5/8" D-Ring |
| CARGO CONTROL | Recessed D-Ring in Floor (Steel Floor Only) |
| COUPLER | Adjustable Pintle in Channel in Lieu of Coupler |
| TIRE/WHEEL | Spare Tire (ST215/75 R-17.5 LR-H) |
